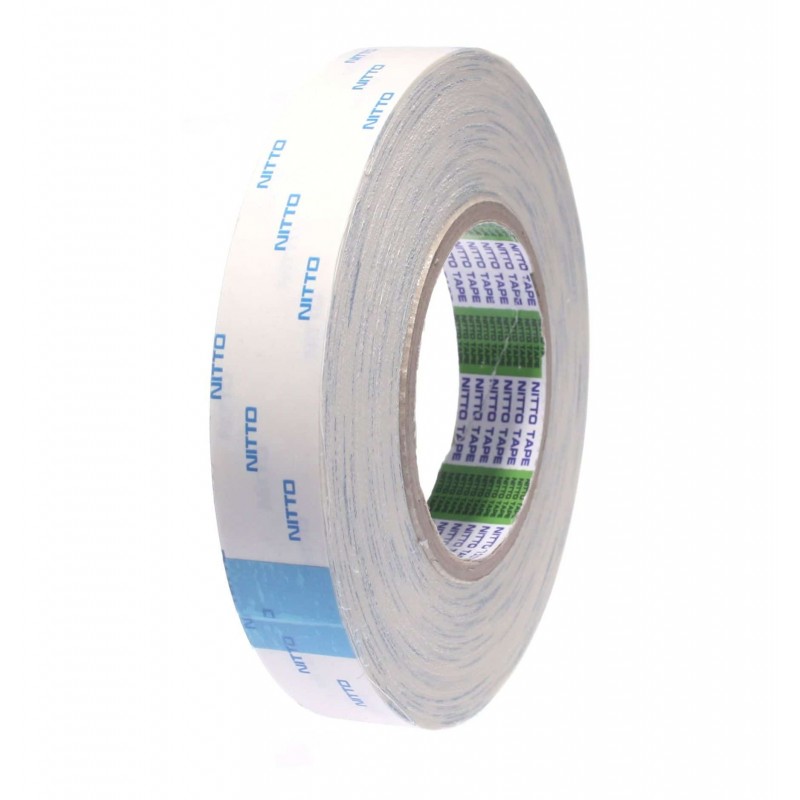

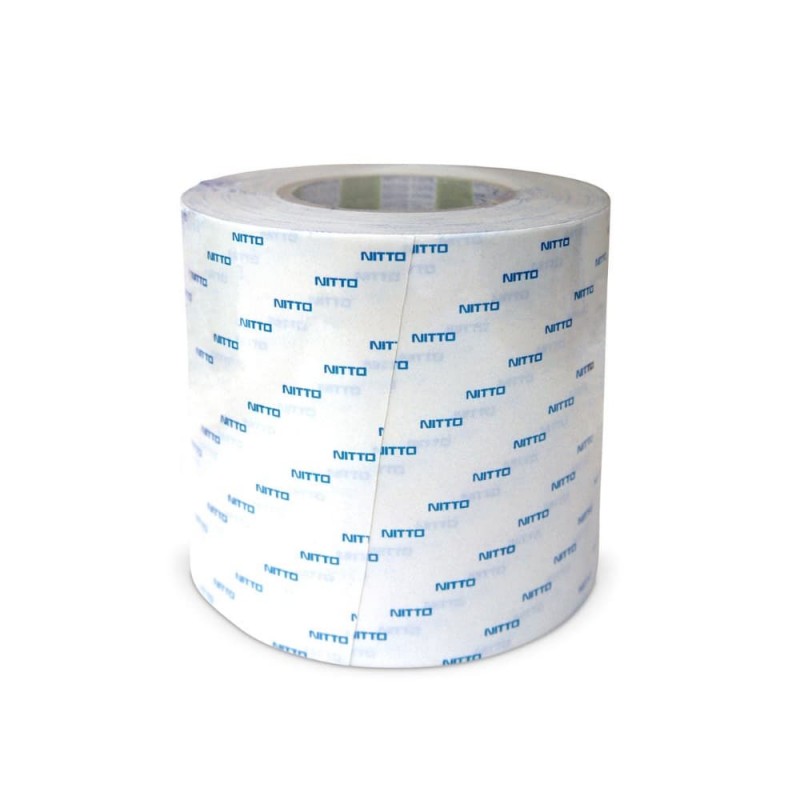

Nitto 5015E in sheets 70cm x 100cm

Name: Nitto 5015E in sheets 70cm x 100cm
Brand: Nitto
SKU: NITTO5015E_70x100
Price: 6.88 EUR
Availability: InStock

Ref. NITTO5015E_70x100

Nitto 5015E double sided tape is made by a non-woven backing coated with a pressure sensitive acrylic adhesive, suitable to be used in a wide range on assembly applications.

The measurement of the sheets are 70 cm x 100 cm

Used in industry and in silk-screen field.

The minimum order quantity is 25 sheets.

For quantities greater than 100 sheets, please mail to serigrafie@acitsrl.com in order to receive a personalized offer.

The price is Ex Works our warehouse: we can arrange the shipment, please ask us the quotation for the shipment sending an email to preventivi@acitsrl.com

€6.88

Quantity

Wishlist

How to
order FAQ

Do you need to buy large quantities or many different items from our catalog?

Before you start with your quotation request, make sure you selected the correct product options

Product description

Features:

High resistance to repulsion
Wide operating temperature range
High adhesion on difficult to stick materials as low surface energy surfaces
Identification by print on backing
RoHS Accordance

Structure

Acrylic adhesive
Non woven
Acrylic adhesive
Liner

Adhesive: Sensitive-pressure modified acrylic adhesive
Thickness of the tape:    0,160 mm
Liner: Nitto silicone white paper
Backing:    Non-woven
Value of adhesion:    1.600 cN/20 mm
Value of release:    20 cN/50 mm
Resistance to static stress:    1 mm/3 h

Applications

Nitto 5015E is suitable to make self-adhesive foam materials and for a wide range of sealing applications. In particular when they are exposed to a remarkable stress, as automotive and industry applications . This double sided tape is used to unite graphic overlays, plastic laminations and moulds, especially if they feature low surface energy surface.
